Kadex

RFID Card Reader for Time Attendance & Door Access Control System

Kadex, a time attendance & door access control RFID card reader supports RFID card ID, 5-digit password or combination of both. Kadex terminal works with security alarm system to alert users in cases of break in and when duress function in Kadex reader is used. The terminal can integrate with fire alarm system to unlock all doors when fire alarm is triggered.

Kadex communicates with computer via TCP/IP and it allows data transfer to be done via USM flash disk to eliminate extra wiring.
¡@
Kadex complies with international standard of CE, UL, FCC & MIC, our testament to safety & quality.

[ FEATURES & BENEFITS ]
¡@
¡@ Time attendance: To collect all clocking data automatically & systematically. Fast & effective data management by powerful software. Verification combination with RFID card, Password, or RFID+Password. "Touch & Go" concept for effective operation.
¡@ Access control: To eliminate unauthorized access. Constant monitoring of staff movement. Extra security with combination of RFID card & password. Easy integration with different types of door lock system. 50 time zones with 5 groups to control staff accessibility. Trigger alarm for tamper switch released, forced access, duress case & external siren. Supports antipassback feature.
¡@ Connectivity: Support standard TCP/IP, RS232 & RS485 connection. Multi readers powered by centralized software. USB flash disk to ease data transfer.

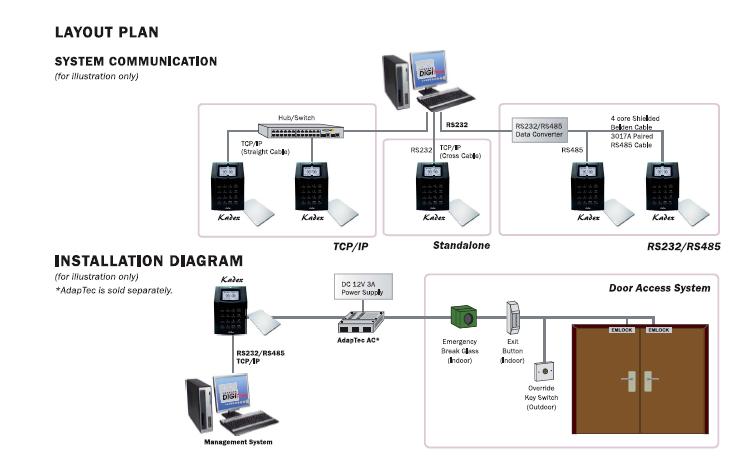

[ LAYOUT PLAN ]
¡@
¡@

[ SPECIFICATION ]
¡@
Size (L x H x W), mm
90 x 136 x 44
Casing material
Acrylonitrile Butadiene
Styrene (ABS)
Verification method:
card, password
Identification time (s)
<1
Transaction logs
50,000 with workcode feature
Communications methods
TCP/IP, RS232, RS485,
USB flash disk
Baud rates (bps)
9600, 19200, 38400, 57600, 115200
Operating temperature(ºC)
0- 45
Operating humidity (%)
20 ~ 80
Operating voltage(V)
DC 12V 3A
Wiegand input and output
26-bits
EM-Lock Driving Output
DC12V 3A
Alarm output
NO/NC
Card type:
RFID
64 bits, Resonance
Frequency: 125kHz
MIFARE

S50/S70, 13.56MHz,
8K bit EEPROM memory
HID
HID 1325,26bits,125kHz
Card reading distance(mm):
RFID
~50
MIFARE
~ 80
HID
~50
Software
DiGiTime Software
