Features:
Up to full size 30 field/sec. or Quad size 120 field/sec. (NTSC)
Up to full size 25 field/sec. or Quad size 100 field/sec. (PAL)
¡@

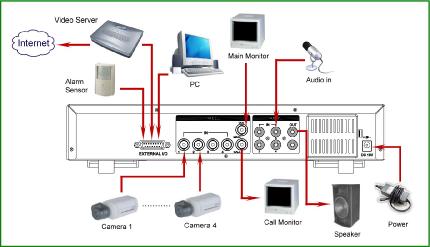

System Connection
Specification
|
Video format |
NTSC/EAI or PAL/CCIR |
|
Hard disk storage |
IDE type, UDMA 66, support 250GB HDD |
|
Record mode |
Manual/ Alarm/ Timer/ Motion |
|
Camera Input Signal |
Composite video signal 1 Vp-p75ΩBNC, 4 channels |
|
Main Monitor Output |
Composite video signal 1 Vp-p75ΩBNC |
|
Call Monitor Output |
Composite video signal 1 Vp-p75ΩBNC |
|
Audio Input |
4 audio inputs, (RCA) |
|
Audio Output |
2 audio output, (RCA) |
|
Motion Detect Area |
16*12targets per camera |
|
Motion Detect Sensitivity |
99 levels |
|
Video Loss Detection |
Yes |
|
Refresh Rate |
240 field/sec. For NTSC / 200 images/sec. For PAL |
|
Recording Rate |
Up to 30 images/sec. For NTSC / 25 images/sec. For PAL |
|
Dwell Time |
Programmable (1~15 Sec) |
|
Picture in Picture |
Yes (Movable) |
|
Key Lock |
Yes |
|
Picture Zoom |
2*2~4*4 (Movable) |
|
Camera Title |
8 letters |
|
Video Adjustable |
Hue/ Colour/ Contrast/ Brightness Adjustable |
|
Alarm Input |
TTL input, Hi (5V), Low (GND) |
|
Alarm Output |
COM,/N.O/ N.C |
|
Remote Control |
RS-232 or RS-485 |
|
Time Display Format |
YY/MM/DD, DD/MM/YY, MM/DD/YY, OFF |
|
Power Source |
AC100~240 +/- 10% switching adaptor |
|
Power Consumption |
DC 19V |
|
Operation Temperature |
10~40oC |
|
RS-232C / RS-485 (bps) |
1200 |
|
Dimension (mm) |
343(W) x 223(H) x 59(D) |
|
Net Weight |
2.4kg |
¡@
